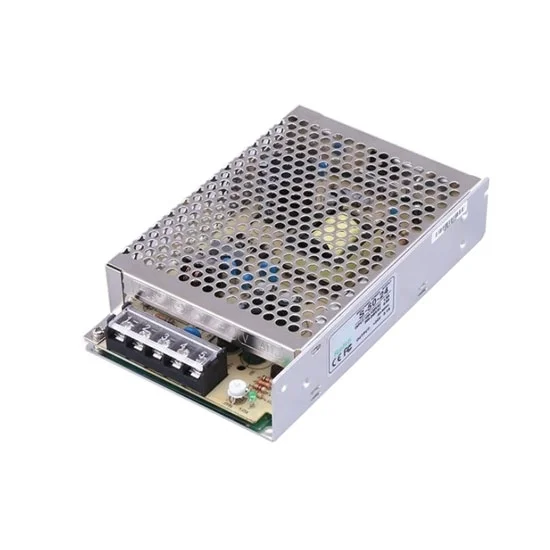

Description
Features
- Universal AC input / Full range AC input
- Short circuit, overload and overvoltage protections
- Cooling by free air convection
- LED indicator for power on
- 100% full load burn-in test
- High reliability, low price and wide range of applications
Specification
| Model | ATO-S-50-12 | |
| Output |
DC Voltage | 12V |
| Rated Current | 4.2A | |
| Current Range | 0 ~ 10A | |
| Rated Power | 50.4W | |
| Ripple & Noise (Max.)(Note 2) | 100mVp-p | |
| Voltage Adjust Range | 10.8 ~ 13.2V | |
| Voltage Tolerance (Note 3) | ±1.0% | |
| Line Regulation | ±0.5% | |
| Load Regulation | ±0.5% | |
| Setup, Rise, Holdup Time | 200ms, 100ms, 30ms | |
| Input | Voltage Range | 85 ~ 132VAC/170V~260VAC (selected by a switch) or 240 ~ 370V DC |
| Frequency Range | 47~63Hz | |
| Efficiency (Typ.) | 78% | |
| AC Current (Typ.) | 1.3A/115V AC 0.65A/230V AC | |
| Inrush Current (Typ.) | Cold start: 18A/115V AC 36A/230V AC | |
| Leakage Current | <1mA/240V AC | |
| Protection | Overload | 105~150% rated output power Protection type: Hiccup mode, recovers automatically after fault condition is removed. |
| Environment | Working Temperature | -10 ~ +60℃ |
| Working Humidity | 20~90% RH non-condensing | |
| Storage Temperature | -20~+85℃ | |
| Storage Humidity | 10~95% RH non-condensing | |
| Temperature Coefficient | ±0.03%/℃ (0~50℃) | |
| Vibration | 10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes | |
| Safety & EMC (Note 4) | Safety Standards | UL1012 Approved |
| Withstand Voltage | I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC | |
| Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC/25℃/70% RH | |
| EMC Emission | Compliance to FCC Part15 Jconduction Class B | |
| Others | MTBF | ≥408.3K hrs MIN. MIL-HDBK-217F (25℃) |
| Dimension | 159*97*38mm (L*W*H) | |
| Weight | 0.51kg | |
| Note | 1. All parameters NOT specially mentioned are measured at 230V AC input, rated load and 25°C of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12″ twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance includes set up tolerance, line regulation and load regulation. 4. The switching power supply is considered a component which will be installed into final equipment. Please make sure that the final equipment still meets EMC directives. |
Dimension (Unit: mm)
Block Diagram
Details
SMPS Power Supply Applications
- Power Tools
Electric Saw, Drilling Machine, Ginder, Sand Blast Machine, Puching Machine, Weeding Machine, Air Compressor, etc. - Offices Devices
Computer, Printer, LCD Monitor, Scanning Machine, etc. - Electrics & Household Appliance
TV, VCRS, Radio, Dust Collector, Fan Lamp or LED Strip, Sewing Machine, Microwave Oven, Fridge/Freezr, Coffemarker, etc. - Industrial Equipemnt
Monitoring Equipment, Shipping, Vehicle, Metalhalide Lamp, Solar System, Wind Power Generation, etc.
Tips: Types of switching power supply (SMPS)
Switching power supply is divided into DC and AC types. The DC type operates on basis of DC/DC convertors. In other words, categorization of DC switching power supply depends on that of DC/DC convertors.
DC/DC convertors are categorized into two types by the standard of whether there is electric isolation between input and output voltage. Those with electric isolation are categorized as isolated DC/DC convertors and those without electric isolation are categorized as non-isolated DC/DC convertors.
AC/DC conversion means converting alternating current into direct current. Its power flow proves to be bidirectional. Power flow borne by power supply flow is called rectification and that borne by returning power supply flow is called active inversion. It can be categorized into half-wave circuit and full-wave circuit according to the wring mode, classified into single phase circuit, three-phase circuit or multi-phase circuit according to the number of phases, or divided into one quadrant circuit, two quadrant circuit, three quadrant circuit and four quadrant circuit according to the operational quadrant.
