Description

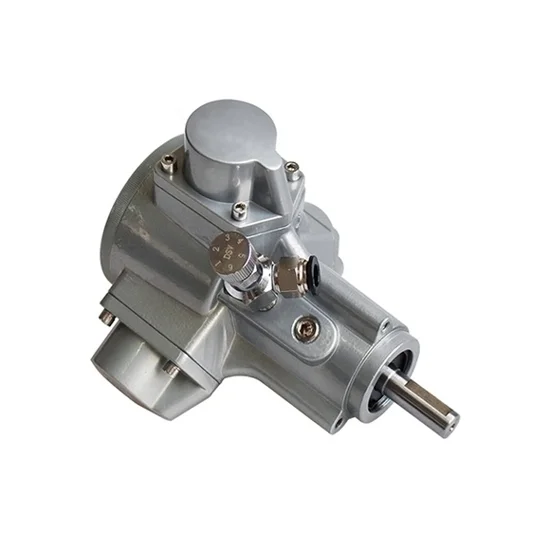

Factory price piston air motor with max. no-load speed 1400 rpm, starting torque 6.28 Nm, stopping torque 7.84 Nm. Lower cost pneumatic piston motor offers low noise, light weight and long service life advantages.
Specification
| Model | ATO-DAM6 |
| Power | 3/4 hp |
| Gear ratio | 1:1 |
| Rated speed | 700 rpm |
| Rated torque | 4.4 Nm |
| Max. no-load speed | 1400 rpm |
| Air consumption | 507 L/min |
| Starting torque | 6.28 Nm |
| Stopping torque | 7.84 Nm |
| Mounting type | Basic type/ flange type/ foot type |
| Certificate | CE |
| Warranty | 12 months |
Dimension
Basic type
Flange type
Foot type
| Model | Dimension (mm) | |||||||||||||||||||||
| A1 | A2 | A3 | A4 | B | C | C1 | D | E | F | G | H | J | M | N | M1 | N1 | M2 | N2 | Q | Q1 | P | |
| ATO-DAM5 | 237 | 196 | 190 | 195 | 175 | 16 | 80 | 14 | 4 | 46 | M6 | 62h7 | 30 | 106 | 80.5 | 130 | 100 | 70 | 42 | 9 | 9 | 95 |
Details
Tips: Faults and Troubleshooting Methods of Piston Air Motor.
Insufficient output speed, insufficient power.
1. Reason analysis.
(1) The valve is installed reversely.
(2) Wear of cylinder and piston ring.
(3) Low air pressure.
(4) The inlet pipe and accessories have too small diameter, which is severely blocked or blocked.
(5) Poor exhaust.
2. Elimination method.
(1) Reinstall.
(2) Replace parts.
(3) Adjust the pressure.
(4) Check the pipeline and its accessories to ensure that the diameter meets the requirements.
(5) Check the main and auxiliary exhaust pipes to ensure that the diameter of the exhaust pipe and the diameter of the intake pipe meet the requirements.
