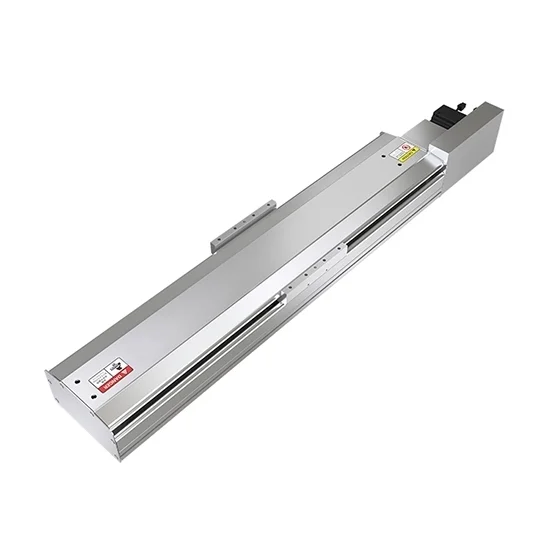

Name: 750W 100~3050mm Belt Driven Linear Slide
SKU: ATO-LS-3050750
Availability: InStock

Description

Belt driven linear slide system for linear motion, which consists of linear guide rail, slide block, motor, sensor and coupling form the linear motion system. 31 values of stroke for selection, 100mm~3050mm, maximum speed 2000mm/s, belt width 50mm, lead range 40mm.

Basic Specification

Model	ATO-GB210
Stroke	100mm~3050mm (100mm pitch)
Belt Width	50mm
Repeatability Accuracy	± 0.04mm
Lead Range	40mm
Max. Speed	2000 mm/s
Max. Payload	Horizontal	85 kg
Vertical	–
Rated Thrust	367 N
Matching Servo Motor Power*	750W
Home Sensor	Outside	EE-SX672 (NPN)
Built-in	EE-SX674 (NPN)

*Note: The servo motor is not included in packing list, if you need one, please contact us.

Speed Chart

Model	Body Width (mm)	lead Range (mm)	Max. Payload (kg)	Max. Speed (mm/s)	Standard stroke and recommended use of the highest speed (mm/s)
Horizontal	Vertical	200	400	600	800	1000	1200	1400	1600	1800	2000	2200	2400	2600	2800	3000	3050
ATO-GB210	210	40	85	–	2000	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	2000

Note: The highest speed is based on the maximum speed of servo motor (3000 rpm).

Features

The linear slide guide rail adopts synchronous belt transmission, high speed, equipped with servo motor up to 2000mm/s, repeat accuracy ±0.04, especially suitable for high-speed linear motion requirements.
The belt driven linear slide is a semi-enclosed linear motion system, which is mainly composed of aluminum body, guide rail, diagonal bearing holder, cover plate, slide block and other components.
Linear slide guide rail uses corrosion-resistant, high-strength aluminum alloy as the base. A high-precision linear guide pair is installed in the base. The aluminum alloy motion base is installed on the slide block. The middle part of motion seat is connected with the nut of ball screw.
Motor of the motorized linear slide drives the sliding table to reciprocate through the ball screw rod.
The diagonal bearing holder ensures the repeatability and positioning accuracy of motion seat. The aluminum alloy cover is installed on the motion base for overall protection.

Motor Mounting Dimensions (Unit: mm)

Motor Power	Motor Size	Shaft Diameter
750W	80mm	19mm

Tips: Preload standard reference for belt driven linear slide.

Selecting proper preload from table below to make the belt driven linear slide to adapt specific applications and conditions.

Preload Level	Conditions	Applications
Light Preload	The loading direction is fixed, vibration and impact are light, and two axes are applied in parallel. High precision is not required, and the low frictional resistance is needed.	Welding machine, binding machine, auto packing machine, XY axis of ordinary industrial machine, material handling equipment.
Medium Preload	Overhang application with a moment load. Applied in one-axis configuration. The need of light preload and high precision.	Z axis of industrial machines, EDM, precision XY table, PC board drilling machine, industrial robot, NC lathe, measuring equipment, grinding machine, auto painting machine.
Heavy Preload	Machine is subjected to vibration and impact, and high rigidity is required. Application of heavy load or heavy cutting.	Machine center, NC lathe, grinding machine, milling machine, Z axis of boring machine and machine tools.
