Description
Specifications

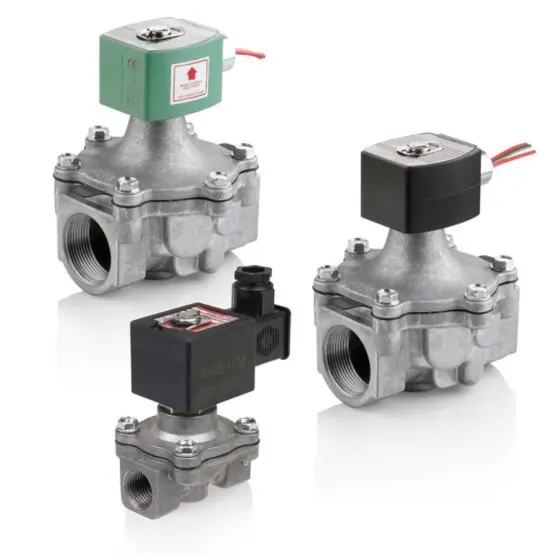

- Valve Actuation: Solenoid – Direct Acting
- Function: 2 way – 2/2 Normally Closed
- Body Material: Aluminum
- Flow (Cv): 21 Cv
- Pipe/Port Type and Size: NPT 1
- Min Ambient Temperature: 32°
- Max Ambient Temperature: 125°
- Product Weight: 9.61 lbs
- Voltage and Frequency: 220, 240 Volts AC with 50/60 Hz
- Watt Rating: 15.4 W
- Holding Current (VA): 24
- Orifice Size: 1-5/8 in
- Coil Class: F
- Coil Number: 099257-002-D
- Mounting Direction: 18 inch, Vertical and Upright
- Carton Note: 1 X 1-5/8 2NC ALUM 15.4/F AC
- Kit Number: 302352-VM
