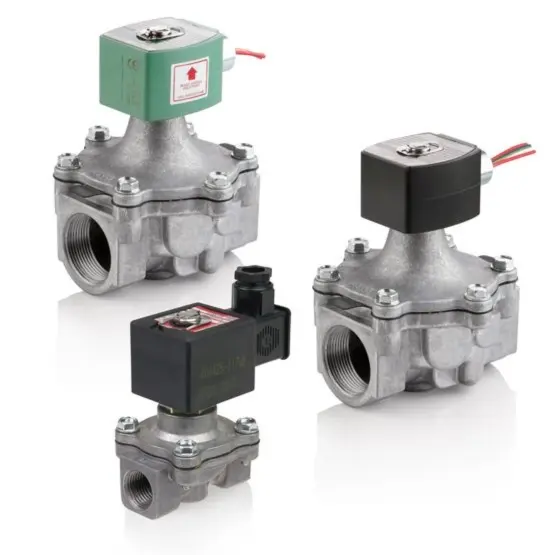

ASCO 8215B070CSAAC110/50D – Solenoid Valve

Description

Specifications

• Valve Actuation: Solenoid – Direct Acting
• Function: 2 way – 2/2 Normally Closed
• Body Material: Aluminum
• Flow (Cv): 35 Cv
• Pipe/Port Type and Size: NPT 1 1/2
• Min Ambient Temperature: 32°
• Max Ambient Temperature: 125°
• Min Fluid Temperature: 32°
• Max Fluid Temperature: 125°
• Product Weight: 8.78 lbs
• Voltage and Frequency: 110 Volts AC with 50 Hz
• Watt Rating: 15.4 W
• Holding Current (VA): 27
• Orifice Size: 1-5/8 in
• Coil Class: FT
• Coil Number: 099257-001-D
• Lead Length: 18 inch
• Carton Note: 1-1/2 X 1-5/8 2NC AL 15.4/F AC
• Kit Number: 302352
