Description
Specifications

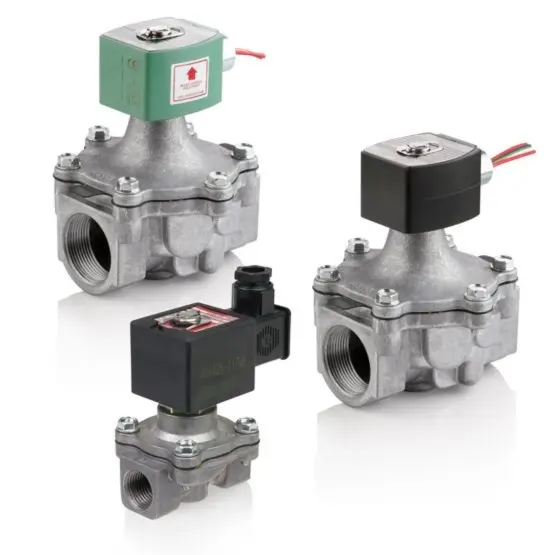

- Valve Actuation: Solenoid – Direct Acting
- Function: 2 way – 2/2 Normally Closed
- Body Material: Aluminum
- Flow (Cv): 4.4 Cv
- Pipe/Port Type and Size: NPT 1/2
- Min Ambient Temperature: 32°
- Max Ambient Temperature: 104°
- Product Weight: 1.26 lbs
- Voltage and Frequency: 120 AC with 60 Hz
- Watt Rating: 11.8 W
- Holding Current (VA): 23
- Orifice Size: 3/4 in
- Coil Class: FT
- Coil Number: 064982-004-D
- Mounting Direction: 18 inch, Vertical and Upright
- Carton Note: 1/2 X 3/4 2NC ALUM 11.8/F AC
- Kit Number: 302350-V
