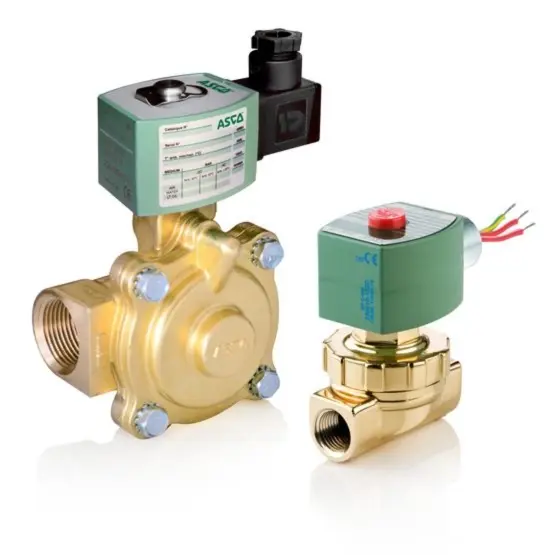

ASCO 8220G097AC120/60D – Hot Water and Steam Valve

Description

Specifications

• Valve Actuation: Solenoid
• Function: 2 way – 2/2 Normally Open
• Body Material: Brass
• Flow (Cv): 13.5 Cv
• Pipe/Port Type and Size: NPT 1
• Media: Steam
• Min Ambient Temperature: 32°
• Max Ambient Temperature: 125°
• Min Fluid Temperature: 32°
• Max Fluid Temperature: 210°
• Product Weight: 4.7 lbs
• Voltage and Frequency: 120 Volts AC with 60 Hz
• Watt Rating: 16.1 W
• Orifice Size: 1 in
• Coil Class: HT
• Coil Number: 272810-032-D
• Lead Length: Any, 18 inch
• Carton Note: 1 X 1 2NO BRASS 16.1/H AC
• Kit Number: 310493
• Order Code: 21853
