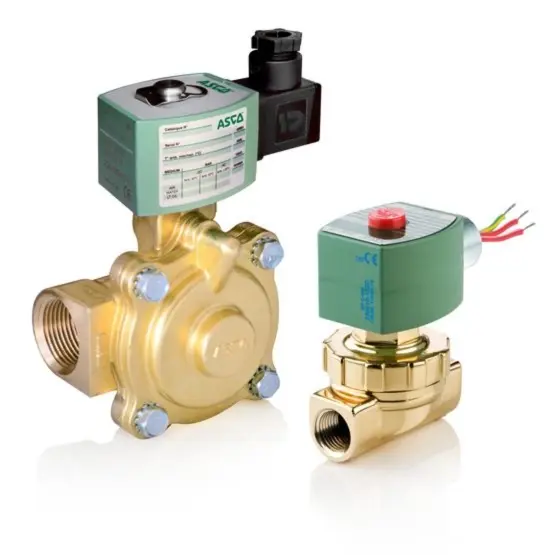

ASCO 8220G407AC120/60D – Hot Water and Steam Valve

Description

Specifications

• Function: 2 way – 2/2 Normally Closed
• Body Material: Brass
• Flow (Cv): 8.8 Cv
• Pipe/Port Type and Size: NPT 3/4
• Media: Steam
• Min Ambient Temperature: 32°
• Max Ambient Temperature: 125°
• Min Fluid Temperature: 32°
• Max Fluid Temperature: 210°
• Product Weight: 1.19 lbs
• Voltage and Frequency: 120 Volts AC with 60 Hz
• Watt Rating: 6.1 W
• Orifice Size: 3/4 in
• Coil Class: FT
• Coil Number: 238210-032-D
• Mounting Direction: 18 inch, Any
• Carton Note: 3/4 X 3/4 2NC BRASS 6.1/F AC
• Kit Number: 323480
• Order Code: 21923
