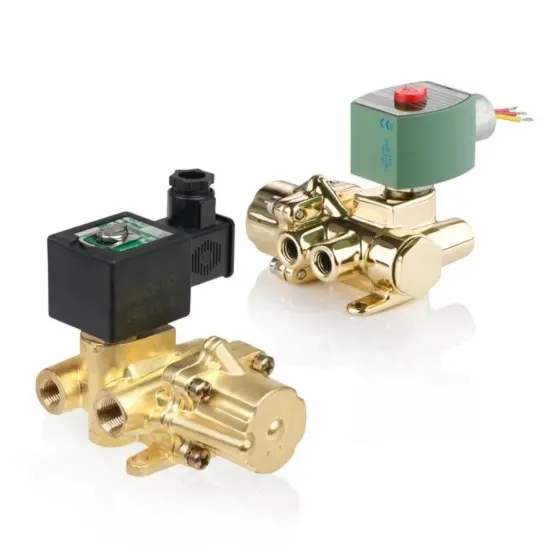

Description
Specifications
- Valve Actuation: Solenoid – Direct Acting
- Function: 4 way
- Body Material: Brass
- Flow (Cv): 1.4 Cv
- Pipe/Port Type and Size: NPT 3/8
- Min Ambient Temperature: 32°
- Max Ambient Temperature: 125°
- Min Fluid Temperature: 32°
- Max Fluid Temperature: 180°
- Product Weight: 7.41 lbs
- Voltage and Frequency: 115 AC with 50 Hz
- Watt Rating: 8.1 W
- Holding Current (VA): 16
- Orifice Size: 3/8 in
- Coil Class: FT
- Coil Number: 238210-033-D
- Lead Length: 18 inch, Any
- Carton Note: 3/8 X 3/8 4W BRASS 8.1/F AC
- Kit Number: 302723
