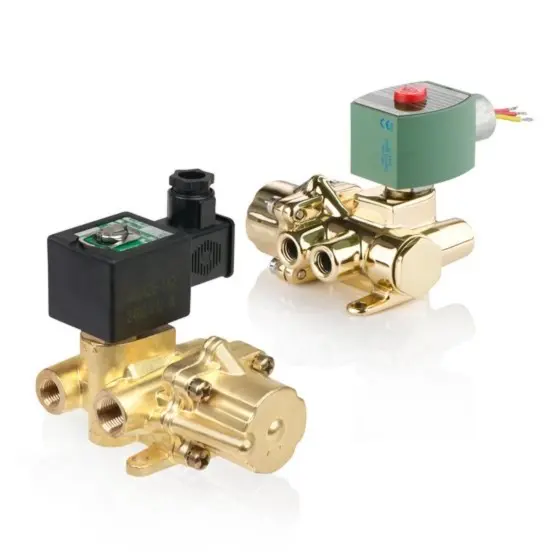

ASCO 8344G082AC120/60D – Pilot Valve

Description

Specifications

• Valve Actuation: Solenoid – Direct Acting
• Function: 4 way
• Body Material: Brass
• Flow (Cv): 1.4 Cv
• Pipe/Port Type and Size: NPT 1/2
• Media: Air, Inert Gas, Light Oil, Water
• Min Operating Pressure (Air): 10 psi
• Max Operating Pressure (Air): 250 psi
• Min Operating Pressure (Water): 10 psi
• Max Operating Pressure (Water): 200 psi
• Min Operating Pressure (Light Oil): 25 psi
• Max Operating Pressure (Light Oil): 125 psi
• Min Ambient Temperature: 32°
• Max Ambient Temperature: 125°
• Min Fluid Temperature: 32°
• Max Fluid Temperature: 180°
• Product Weight: 7.41 lbs
• Voltage and Frequency: 120 Volts AC with 60 Hz
• Watt Rating: 6.1 W
• Holding Current (VA): 16
• Orifice Size: 3/8 in
• Coil Class: FT
• Coil Number: 238210-032-D
• Lead Length: Any, 18 inch
• Carton Note: 1/2 X 3/8 4W BRASS 6.1/F AC
