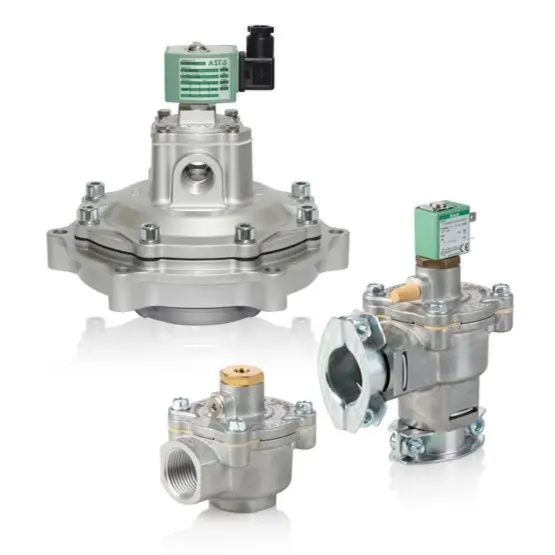

ASCO 8353G007AC100/60D – Solenoid Valve

Description

Specifications

• Valve Actuation: Solenoid
• Function: 2 way – 2/2 Normally Closed
• Body Material: Aluminum
• Flow (Cv): 82 Cv
• Pipe/Port Type and Size: NPT 2-1/2
• Min Ambient Temperature: 0°
• Max Ambient Temperature: 185°
• Min Fluid Temperature: 0°
• Max Fluid Temperature: 185°
• Product Weight: 0 lbs
• Voltage and Frequency: 100 AC with 60 Hz
• Watt Rating: 10.1 W
• Holding Current (VA): 25
• Orifice Size: 3 in
• Coil Class: FT
• Coil Number: 238610-026-D
• Mounting Direction: Any, 18 inch
• Carton Note: 2-1/2 X 3 2NC 10.1/F AC
• Kit Number: 176878
