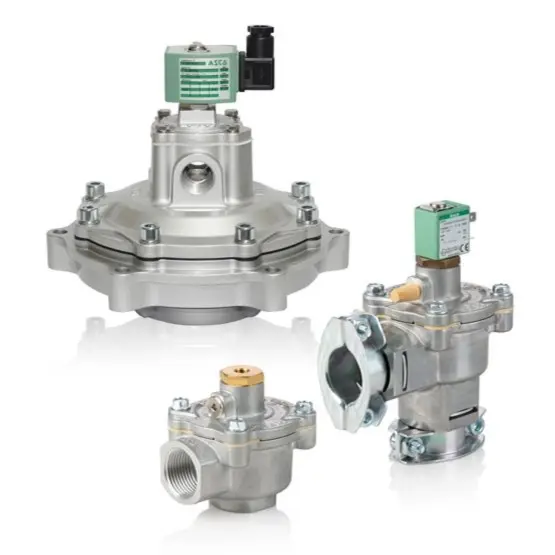

ASCO 8353G041AC480/60,440/50D – Solenoid Valve

Description

Specifications

• Valve Actuation: Solenoid
• Function: 2 way – 2/2 Normally Closed
• Body Material: Aluminum
• Flow (Cv): 20 Cv
• Pipe/Port Type and Size: NPT 1
• Media: Air, Inert Gas
• Min Operating Pressure (Air): 5 psi
• Max Operating Pressure (Air): 125 psi
• Min Ambient Temperature: 0°
• Max Ambient Temperature: 150°
• Min Fluid Temperature: 0°
• Max Fluid Temperature: 150°
• Product Weight: 3.9 lbs
• Voltage and Frequency: 440, 480 Volts AC with 50/60 Hz
• Watt Rating: 6.1 W
• Holding Current (VA): 16
• Orifice Size: 1-1/8 in
• Coil Class: FT
• Coil Number: 238210-088-D
• Lead Length: Any, 18 inch
• Carton Note: 1 X 1-1/8 2NC 6.1/F AC
• Kit Number: 316563
