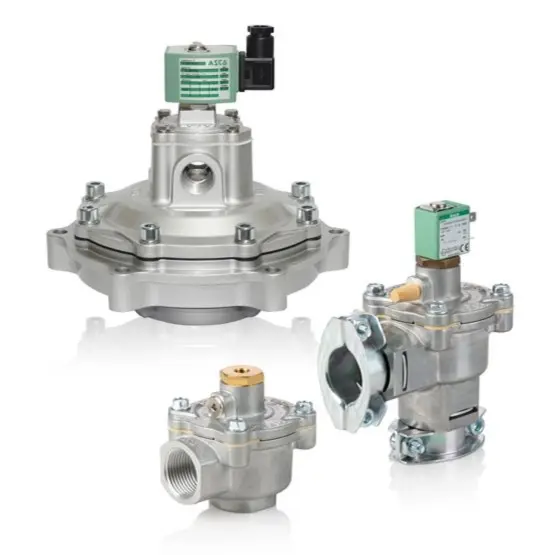

ASCO EF8353H054AC220/50D – Solenoid Valve

Description

Specifications

• Valve Actuation: Solenoid
• Function: 2 way – 2/2 Normally Closed
• Body Material: Aluminum
• Flow (Cv): 50 Cv
• Pipe/Port Type and Size: NPT 1 1/2
• Media: Air, Inert Gas
• Min Operating Pressure (Air): 5 psi
• Max Operating Pressure (Air): 125 psi
• Min Ambient Temperature: 0°
• Max Ambient Temperature: 150°
• Min Fluid Temperature: 0°
• Max Fluid Temperature: 150°
• Voltage and Frequency: 220 Volts AC with 50 Hz
• Watt Rating: 10.1 W
• Holding Current (VA): 25
• Orifice Size: 2 in
• Coil Class: FT
• Coil Number: 238614-058-D
• Lead Length: 18 inch, Any
• Carton Note: 1-1/2 X 2 2NC AL 10.1/F AC
• Kit Number: 322108
