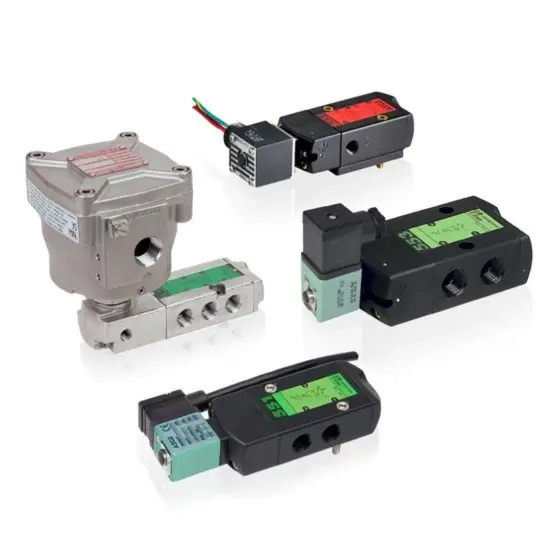

ASCO G551A101 – Series 551 Solenoid Spool Valve

Description

Specifications

• Product Type: Solenoid Valve
• Valve Actuation: Solenoid – Air Pilot
• Function: 3/2 Normally Closed – 5/2 Spring Return
• Body Material: Light Alloy
• Flow (Cv): 0.87 Cv
• Pipe/Port Type and Size: G 1/4 (ISO 228/1)
• Media: Air, Inert Gas
• Min Operating Pressure (Air): 2 bar
• Max Operating Pressure (Air): 10 bar
• Min Ambient Temperature: -25 °C
• Max Ambient Temperature: 60 °C
• Min Fluid Temperature: -25 °C
• Max Fluid Temperature: 60 °C
• Product Weight: 0.31 kg
• Orifice Size: 6 mm
