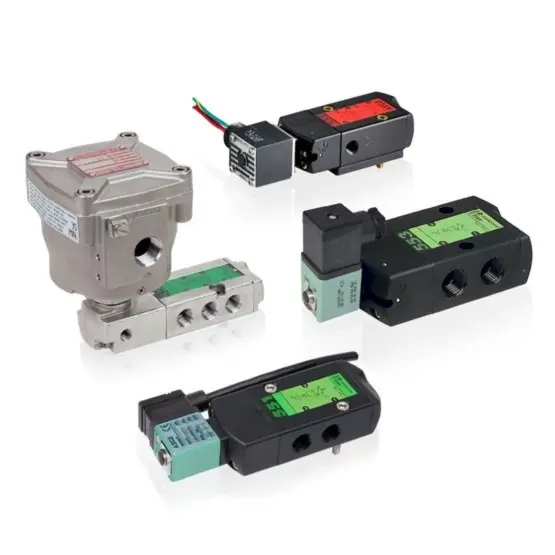

ASCO G551A118 – Pilot Valve

Description

Specifications

• Product Type: Solenoid Valve
• Valve Actuation: Pneumatic – Air Pilot
• Function: 5/2 Air Return
• Body Material: Light Alloy
• Flow (Cv): 0.87 Cv
• Pipe/Port Type and Size: G 1/4 (ISO 228/1)
• Media: Air, Inert Gas, Inert Gas
• Min Operating Pressure (Air): 2 bar
• Max Operating Pressure (Air): 10 bar
• Min Ambient Temperature: -25 °C
• Max Ambient Temperature: 60 °C
• Min Fluid Temperature: -25 °C
• Max Fluid Temperature: 60 °C
• Product Weight: 0.4 kg
• Orifice Size: 6 mm
