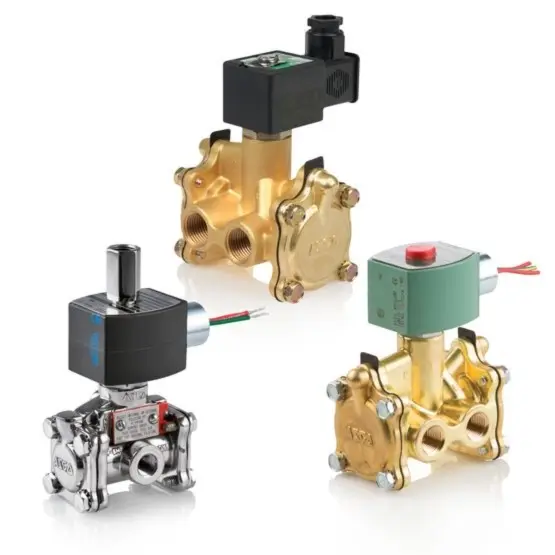

ASCO JSF8316G054AC110/50 – Solenoid Valve

Description

Specifications

• Valve Actuation: Solenoid
• Function: 3 way – 3/2 Normally Closed
• Body Material: Brass
• Flow (Cv): 2.5 Cv
• Pipe/Port Type and Size: NPT 3/8
• Media: Air, Inert Gas, Water
• Min Operating Pressure (Air): 10 psi
• Max Operating Pressure (Air): 150 psi
• Min Operating Pressure (Water): 10 psi
• Max Operating Pressure (Water): 125 psi
• Product Weight: 3.9 lbs
• Voltage and Frequency: 110 AC with 50 Hz
• Watt Rating: 6.1 W
• Orifice Size: 5/8 in
• Coil Class: F
• Coil Number: 238212-032
• Mounting Direction: ANY
• Carton Note: 3/8 X 5/8 3NC BRASS 8.1/F AC
• Kit Number: 314491
