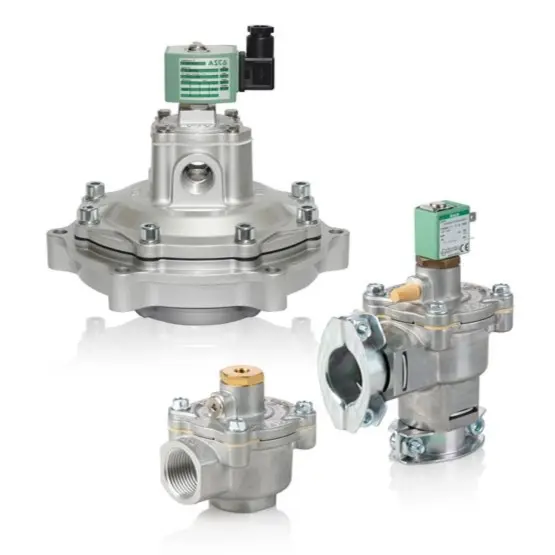

ASCO JSF8353G041AC24/60 – Solenoid Valve

Description

Specifications

• Valve Actuation: Solenoid
• Function: 2 way – 2/2 Normally Closed
• Body Material: Aluminum
• Flow (Cv): 20 Cv
• Pipe/Port Type and Size: NPT 1
• Media: Air, Inert Gas
• Min Operating Pressure (Air): 5 psi
• Max Operating Pressure (Air): 125 psi
• Product Weight: 3.9 lbs
• Voltage and Frequency: 24 Volts AC with 60 Hz
• Watt Rating: 6.1 W
• Orifice Size: 1-1/8 in
• Coil Class: F
• Coil Number: 238212-005
• Mounting Direction: Any
• Carton Note: 1 X 1-1/8 2NC 6.1/F AC
• Kit Number: 316563
