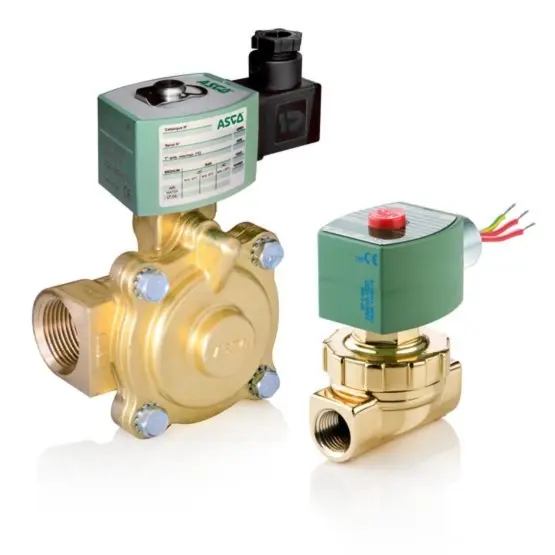

ASCO SU8220G027AC120/60,110/50 – Hot Water and Steam Valve

Description

Specifications

• Valve Actuation: Solenoid
• Function: 2 way – 2/2 Normally Closed
• Body Material: Brass
• Flow (Cv): 15 Cv
• Pipe/Port Type and Size: NPT 1 1/4
• Media: Steam
• Min Ambient Temperature: 32°
• Max Ambient Temperature: 125°
• Min Fluid Temperature: 32°
• Max Fluid Temperature: 210°
• Product Weight: 5.01 lbs
• Voltage and Frequency: 110, 120 Volts AC with 50/60 Hz
• Watt Rating: 10.1 W
• Orifice Size: 1-1/8 in
• Coil Class: HT
• Coil Number: 238812-032
• Mounting Direction: Any
• Carton Note: 1-1/4 X 1-1/8 2NC BRASS 10.1/H AC
• Kit Number: 304392
