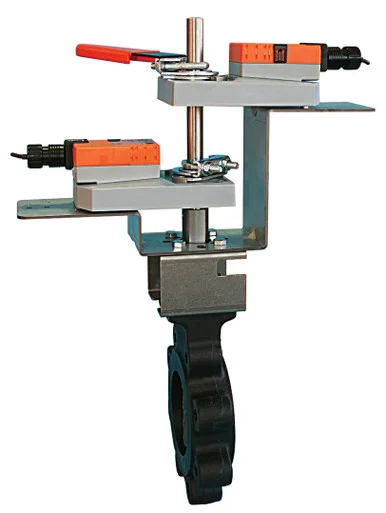

Belimo F6100-150SHP+2*GMX24-MFT-X1 2-Way 4″ Inch Butterfly Valve, ANSI Class 150, Cv 451 + Dual Non-Fail Safe Valve Actuator, 24VAC/DC, Programmable (2-10VDC Default) Control, 5-Year Warranty

Description

Belimo F6100-150SHP+2*GMX24-MFT-X1 : 2-Way 4″ Inch Butterfly Valve, ANSI Class 150, Cv 451 + Dual Non-Fail Safe Valve Actuator, 24VAC/DC, Programmable (2-10VDC Default) Control, 5-Year Warranty

This Belimo butterfly valve assembly provides dependable flow control for chilled water and hot water HVAC hydronic systems. The actuator supports modulating control and common building automation sequences. Use the specifications below to confirm pressure class, Cv, voltage, control signal, and enclosure rating before ordering.

Belimo F6100-150SHP Valve Specifications

ANSI Class	150
Pattern	2-way
Cv	451
Fluid	Chilled or hot water, up to 60% glycol, steam
Body Pressure Rating	ANSI Class 150
End Fitting	Flange
Valve Size	4″ [100]



Belimo 2*GMX24-MFT-X1 Valve Actuator Specifications
