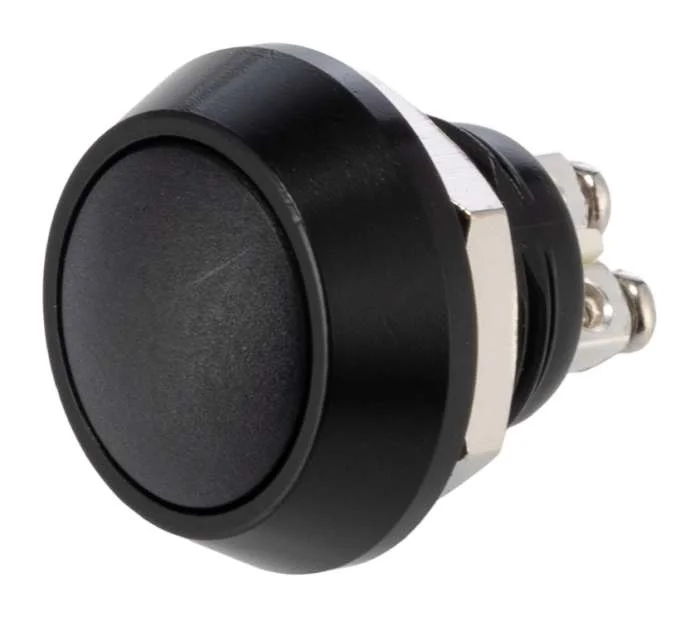

Bulgin MMP0120 Series Push Button Switch, Momentary, Panel, 12 mm Cutout, SPST, Amber, Blue, Green, Orange, Red LED,

Description

Vandal Resistant Pushbutton Switches – MMP0120 Series

Features and Benefits

• 12mm diameter, raised domed profile
• Front Panel Sealed to IP65, some variants also available to IP67 (part codes containing 67)
• Illuminated versions
• Choice of Termination, depending on part code suffix: S – Screw Terminals, P – 2mm x 0.5mm Pin Terminals
• Choice of body material and button material, depending on part code:
– Stainless Steel body and button: /SSS
– Nickel Plated Brass body and button: /NNB
– Black Anodized Aluminium body: /A with PBT button in a choice of colour: RD – Red, GN – Green, BL – Blue, BK – Black
