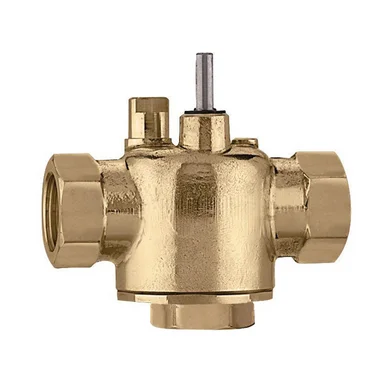

Caleffi Z300513 : 3-Way Valve, 3/4″ NPT, 3.5 Cv, 30 psi ΔP (Valve Only)
The Caleffi Z300513 is a Z3 3-way diverting valve body designed for motorized zone valve applications. It provides two-position on/off control and features a diverting flow pattern ideal for managing fluid redirection in hydronic heating or cooling systems. The valve includes a stainless steel stem and EPDM rubber seals and paddle to ensure durability, corrosion resistance, and consistent performance.
The Z300513 is compatible with Caleffi Z1 actuators and uses a 3/4″ NPT threaded connection for straightforward installation. Its brass body provides strength and longevity under demanding operating conditions.
Key Features
- 3-way on/off, two-position diverting valve body
- Diverting flow pattern for precise zone control
- Stainless steel stem with EPDM rubber seals and paddle
- 3/4″ NPT threaded connections for quick installation
- Compatible with Caleffi Z1 actuators
- Brass body construction for long-lasting service life
Technical Specifications
- Valve Type: 3-Way Diverting
- Connection Type: 3/4″ NPT
- Maximum Operating Pressure: 300 psi
- Maximum ΔP: 30 psi
- Cv Rating: 3.5 gpm
- Medium Temperature Range: 32–240 °F
- Body Material: Brass
Datasheets
|
Caleffi Z-One Zone Valve Technical Brochure |
|
|
Caleffi Z-One Motorized Zone Valve Installation and Commissioning Manual |
|
|
Caleffi Z300513 Sell Sheet |
|
|
Submittal Data |
