Description

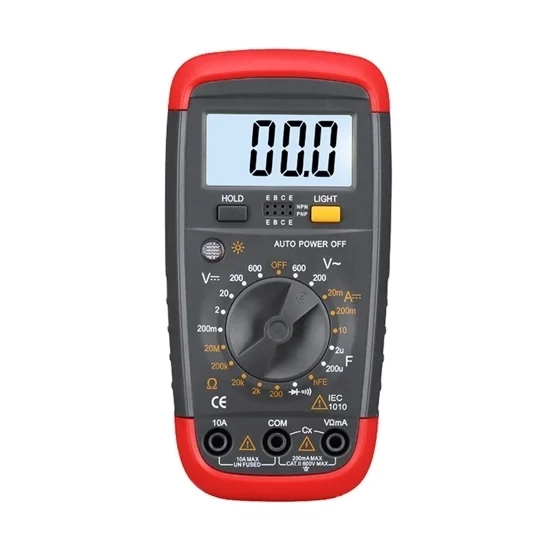

Wholesale price 600V smart multimeter is available with manual range, 1999 max display, diode/triode testing data hold, low battery indication, overload protection and other functions. 10A digital multi meter is the best solution for measuring current, voltage, resistance, and capacitance.
Specifications
| Model | ATO-MLT-UA33D |
| Maximum Display Value | 1999 |
| Operation Mode | Manual Range |
| Sample Frequency | 60Hz |
| Input Impedance | 10MΩ |
| Battery Type | 6F22 9V Battery (Not Included) |
| Dimension | 143x74x35mm |
| Weight | About 300g |
| DC Voltage | 200mV/2V/20V/200V/600V |
| AC Voltage | 200V/600V |
| DC Current | 20mA/200mA/10A |
| Resistance | 200Ω/2000Ω/20kΩ/200KΩ/20MΩ |
| Capacitance | 2μF/200μF |
Functions
| Overload Protection | √ | Auto Power Off | √ |
| Diode Test | √ | Back Light | √ |
| HEF/Transistor | √ | Backlight Function | √ |
| Capacitance Test | √ | On-off Buzzer | √ |
| Low Battery Display | √ | Data Hold | √ |
Details
Applications
Tips: What is a digital multimeter used for?
A digital multimeter (DMM) is a handheld device used to measure electrical properties such as voltage (potential difference), current, and resistance. It is a versatile tool that can be used in a variety of applications, including:
- Testing continuity: Checking if an electrical circuit is complete or if there is a break in the circuit.
- Measuring voltage: Testing the voltage level of batteries, power supplies, or wall outlets.
- Measuring current: Testing the flow of current in an electrical circuit.
- Measuring resistance: Checking the resistance of resistors or other components in a circuit.
- Testing diodes: Checking the forward and reverse voltage of a diode.
- Troubleshooting electrical circuits: Identifying problems in an electrical circuit by measuring various properties.
Digital multimeters are widely used in electronics, electrical engineering, and electrical repair, among other fields. They are popular for their accuracy, ease of use, and ability to display readings digitally.
