FlexLink M5 T-Connector, Connecting Component, Strut Profile 44 x 48 mm, Groove Size 11 mm, Round Tube Size 12 mm

Description

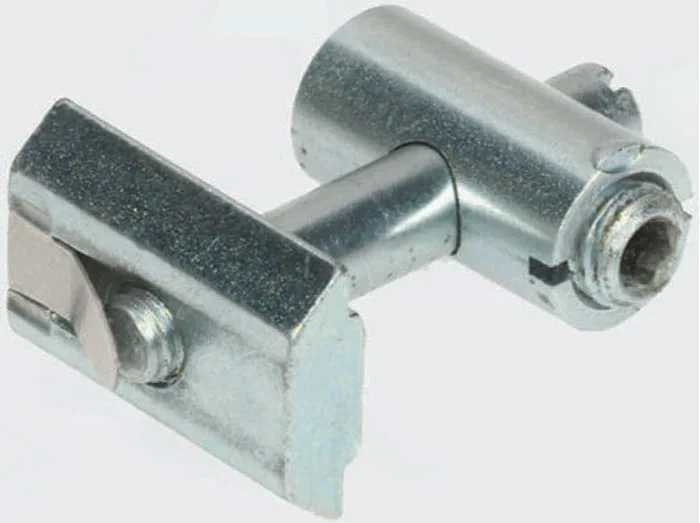

T-slot Connector XC

Use to connect beam end to beam side, consists of a threaded shaft, yoke, stop screw and T-slot nut.A 12.2 mm diameter through hole needs to be drilled 22 mm from the end of the beam.,The yoke is placed in the hole and the T-slot nut into the beam side. An Allen key may then be used to tighten the yoke and pull the connector tight. The position of the connector can be easily adjusted.
