Description

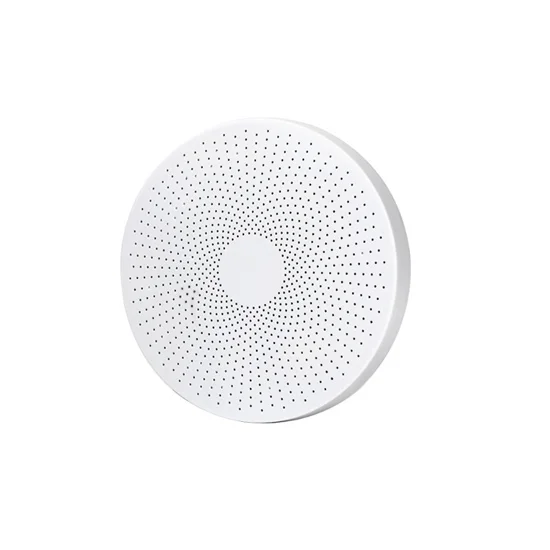

Low-cost indoor air quality sensor for sale, measuring temperature (-20°C to +60°C), humidity (0-100% RH), PM2.5 (0-1000µg/m³), PM10 (0-2000µg/m³), H2S (0-100ppm), and CO2 (0-2000ppm).
Specification
| Model | ATO-BRW100-2204 |
| Transmission Method | RS485 |
| Humidity Range | 0~100% RH |
| Operating Temperature | -20°C~+60°C |
| PM2.5 Measurement Range | 0-1000ug/m3 |
| PM10 Measurement Range | 0-2000ug/m3 |
| H2S Measurement Range | 0~100ppm |
| CO2 Measurement Range | 0~2000ppm |
| Illumination | 0-200Klux |
| Communication Protocol | MODBUS RTU |
| Power Supply | 12-24VDC Supply |
| Power Consumption | <150mA |
| Power Consumption | 0.5W |
| Sampling Method | Diffuse |
| Installation Method | Wall Mount/Ceiling Mount |
| Body Material | ABS |
| Lifespan | 5 years |
Feature
- Multi-Parameter Precise Monitoring: Capable of real-time monitoring of indoor temperature, humidity, carbon dioxide, PM2.5/PM10, and gases.
- Industrial-grade Sensor Chip: Utilizes a high-precision intelligent chip with strong anti-interference capability for more accurate measurements.
- IP65 Waterproof Rating: Meets IP65 waterproof standards, suitable for use in humid environments and capable of operating normally in various conditions.
- Counterflow Air Hole Design: Designed with counterflow air holes for more accurate measurements and efficient airflow.
- Wide Range of Applications: Widely applicable for comprehensive environmental monitoring in various indoor settings.
Application
Tips: Can the sensor be integrated with other smart devices or systems?
Yes, the Indoor Air Quality Sensor can be integrated into a broader smart building or air quality management system. Its RS485 communication protocol makes it compatible with various monitoring platforms and automation systems. This allows the sensor to send real-time data to a central hub, which can then trigger automated actions, such as turning on ventilation fans, adjusting air conditioning systems, or notifying facility managers when air quality drops below desired levels. If you’re using the sensor in a smart home or smart office environment, this integration can help improve the comfort and health of your space automatically.
