Description

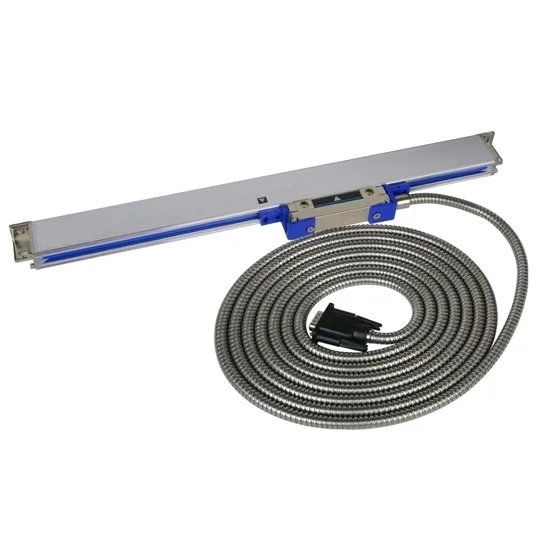

High speed linear scale length is 50mm/2″, 1200mm/48″, 2000mm/78″, (or choose other stroke). Resolution can select 0.5 um, 1 um or 5 um, signal output types also available. Factory direct sales.
After purchasing one ATO linear scale, you can buy a digital readout for milling machine, lathes or table saw fence.
Specification
| Model | ATO-LS-WTB | ||
| Resolution | 0.5 µm | 1 µm | 5 µm |
| Speed | 30m/min | 60m/min | 90m/min |
| Effective Movement Length | 50-1000mm, (2″-40″) | 50-3000mm (2″-118″) | |
| Precision | ±（3+3L0/1000) µm (or even higher) | ||
| Output Signal | TTL or RS422 | ||
| Grating Pitch | 20 µm | ||
| RI | There is an RI every 50mm (1.9″) | ||
| Nominal Length | When L0=50~1000mm, it is one file every 50mm | ||
| When L0=1000～3000mm, it is one file per 100mm. | |||
| Maximum Stroke Within 1000mm | Scale Length: 3.5m (11 feet) | ||
| Maximum Stroke Within 1000-1500mm | Scale Length: 5.0m (16 feet) | ||
| Maximum Stroke above 1600mm | Scale Length: 10m (32 feet) | ||
| Thickness | 21mm （0.8″） | ||
| IP Rating | 54 | ||
| Working Voltage | 5±0.25V | ||
| Work Waste | Max, 5V, 40mA | ||
| Reserving Temperature | 0-50℃ | ||
| Working Temperature | 0-40℃ |
Dimensions (Unit: mm)
Linear Scale Output Signal
Linear Encoder Plug Types
