Description

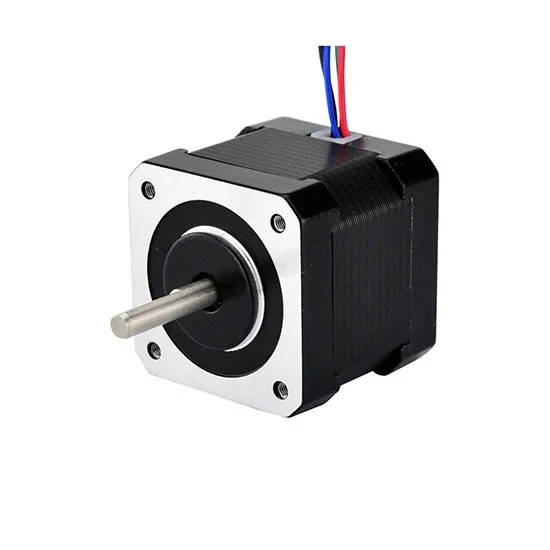

The Nema 17 stepper motor is a professional and high precision stepper motor with 1.8 deg. step angle (200 steps/revolution), 2 phase 4 wires, high holding torque, each phase draws current 1A at 6V.
Specifications
| Electrical Specification | Model | ATO60-1004A |
| Matched the Driver Model | ATODSP42 (Click it to see more info) | |
| Step Angle | 1.8° | |
| Holding Torque | 6.0kg-cm(85oz-in) | |
| Voltage | 6V | |
| Rated Current/phase | 1A | |
| Phase Resistance | 6Ω | |
| Inductance | 10mH | |
| Rotor Inertia | 80g-cm2 | |
| Physical Specification | Frame Size | 42 x 42mm |
| Length | 60mm | |
| Shaft Diameter | Φ5mm | |
| Shaft Length | 22mm | |
| Motor Leads | 4 | |
| Weight | 0.48kg | |
| Technical Parameters | Step Angle Accuracy | ±5% (full step, no load) |
| Resistance Accuracy | ±10% | |
| Inductance Accuracy | ±20% | |
| Temperature Rise | 80℃ Max. (rated current, 2 phase on) | |
| Ambient Temperature | -10℃~+50℃ | |
| Insulation Resistance | 100MΩ Min. 500VDC | |
| Dielectric Strength | 1Min. 500VAC·5mA | |
| Shaft Radial Play | 0.06Max. 450g | |
| Shaft Axial Play | 0.08Max. 450g | |
| Quality Assurance | Warranty Period | 12 months |
| Certificate | CE, ROHs, ISO/SGS9001 |
Nema 17 Stepper Motor Dimension (Unit=mm)
L1=24mm, Lmax=60mm
Nema 17 Stepper Motor Wiring Diagram
Tips: Angular position detection of stepper motor
As for angular position of stepper motor, it is generally detected through two methods: using rotary transformer and optical encoder. Absolute optical encoder is a non-contact position feedback and measurement element, featuring simple structure, high reliability, high resolution, high precision, small volume and light weight.
By connecting coded disc with mechanical axis, angle coding can be directly output, then the coding is input into the SCM. The angle value can be obtained through decoding without any adjunct circuit, like A/D switching and amplifying filter, etc..
Stepper motor control system with optical encoder is comprised of stepper controller, driver and stepper motor. The feedback on output of optical encoder is given to the control circuit. Then, the circuit adjusts the angle of stepper motor according to the feedback output.
