Siretta TANGO11A/1.5M/SMAM/S/S/19 Puck Multi-Band Antenna with SMA Male Connector, Wi-Fi 6, ISM Band, Cat-M, 5G, WiFi

Description

TANGO 11A Quad Band GSM/GPRS/3G Puck Antenna, Siretta

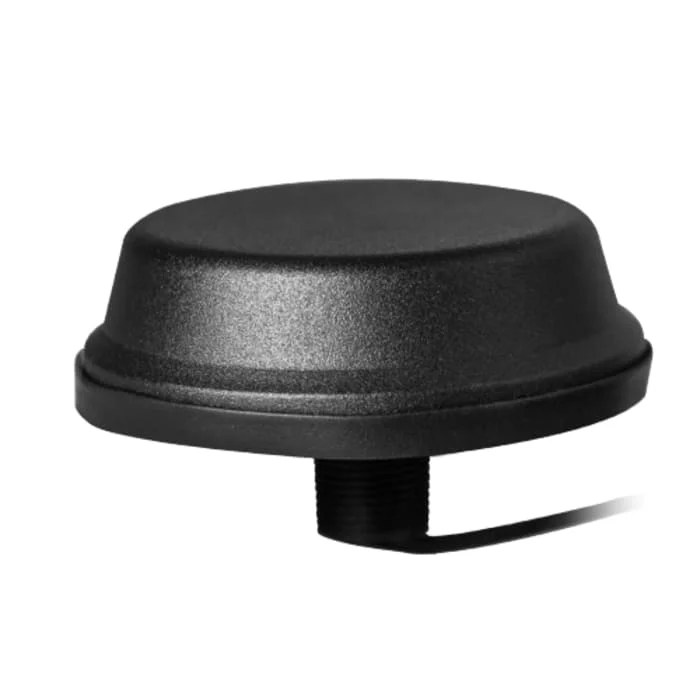

The Tango 11A family are compact, puck shaped antennas, tuned to the mobile phone, quad band GSM and 3G operating frequencies. Compatible with worldwide mobile communication (cellular applications) and achieve a high peak gain of 3 dBi. They have a diameter of 80 mm and height of 23 mm so fit comfortably on to most surfaces. Suitable for internal or external mounting, with a 22mm long screw thread, IP67 rating and rubber seal gasket.

The Tango 11A are suitable for a range of applications including: car park metering, utilities metering, traffic monitoring and many other M2M applications that require data transfer over the GSM or 3G bandwidths.

Available with a SMA male connector with a choice of two RG174 coaxial cable lengths:

TANGO11A/1.5M/SMAM/S/S/19 – 1.5 meter cable (RS 124-8700)
TANGO11A/2.5M/SMAM/S/S/19 – 2.5 meter cable (RS 124-8701)
