Description

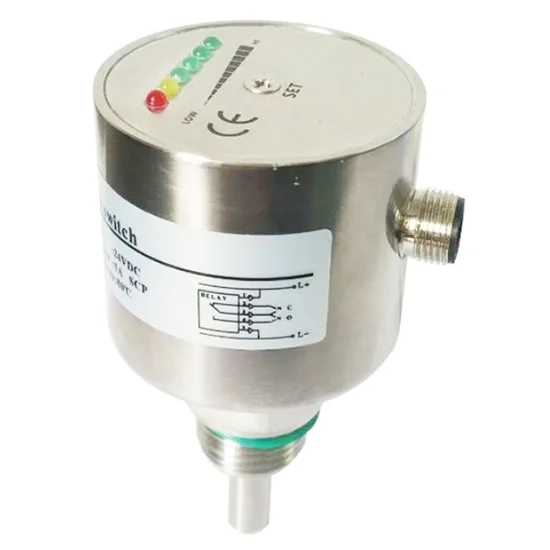

With an accuracy of ±1-±10cm/s, the ATO-RMD-F1 water flow switch can easily measure water with a range of 3-300cm/s, air with 200-3000cm/s and oil with 3-300cm/s. It has stainless steel shell and IP67 protection grade. Good quality but lower cost.
Specification
| Model | ATO-RMD-F1 |
| Media type | Liquid |
| Measuring range | Water 3-300cm/s, Air 200-3000cm/s, Oil 3-300cm/s |
| Accuracy | ±1-±10cm/s |
| Settling time | 3 minutes |
| Working pressure | 100bar |
| Medium temperature | -20℃ to 80℃ |
| Thread | G1/2, G1/4 Male Thread, M18 Female Thread |
| Power | 24VDC, 110VAC, 220VAC |
| Output signal | PNP/ NPN/ Relay/ 4-20mA |
| Sensor length | 15mm, 20mm, 30mm, 40mm, 60mm |
| Setting | Potentiometer |
| Consumption current | ＜80mA |
| Flow indicator | 6 LED lamps |
| Response time | 2 (2-10)s |
| Max. temperature gradient of medium | 300K/min |
| Protect | Reverse/ Short/ Overload |
| Protection grade | Ip67 |
| Power connector | M12 connector |
| Material |
Sensor: ANSI316L Body: ANSI316L |
| Load |
Current: 250mA Relay: 30VDC/5A, 110VAC/5A, 220VAC/5A |
| Net Weight | 1kg |
| Single package size | 140x120x110mm |
| Package type | Carton box, each flow switch is individually packaged |
Thermal dispersion water flow switch installation diagram
Thermal dispersion flow switch dimension diagram
Thermal dispersion water flow switch wiring diagram
Recommended collocation
Details
Tips: Advantages of ATO thermal dispersion flow switch
- The probe has been specially treated with a protective film on the surface, which is completely anti-corrosion and anti-scaling.
- ATO thermal dispersion flow switch is set directly through the drive screw and the dynamic potentiometer, without disassembly, so it is completely waterproof.
- The original dual conditioning skills are used to make conditioning more convenient and more accurate.
- The LED light can reflect the current flow.
- Ultra-small shell, integrated planning, made of stainless steel, beautiful and durable.
- The interface adopts a standard interface, which is completely compatible with other general flow switches and can be directly replaced.
- ATO thermal dispersion flow switch can completely replace the currently commonly used monotonic thermal conductivity, which is the upgraded product of monotonic thermal conductivity.
