Description

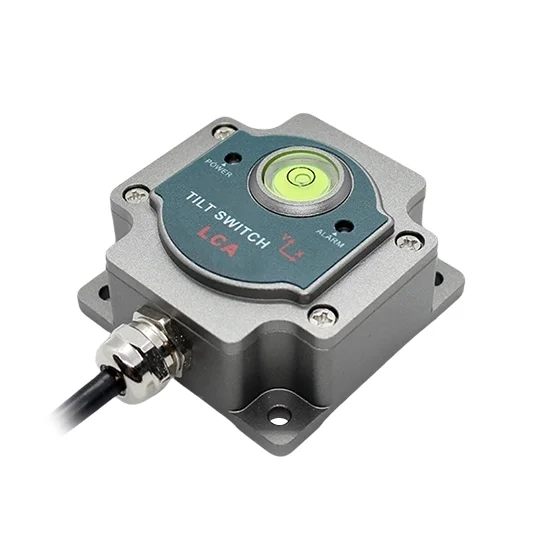

Low price tilt sensor is suitable for tilt detection in underground drilling rig attitude navigation, geological equipment tilt detection, railway locomotive monitoring, and oil drilling equipment. High precision inclinometer sensor, single or dual axis, switch output, measuring range ±15°, absolute accuracy 0.1°, and power supply 12V or 24V. Wide range alarm angle valve 0-15° for selection.
Specification
| Model | ATO-LCA341 | ATO-LCA342 |
| Number of Axes | Single Axis | Dual Axis |
| Alarm Angle Value | 0-15° | |
| Power supply | 12V/ 24V | |
| Max. alarm output current | 1000mA | |
| Working current | 40mA | |
| Measuring range | 15° | |
| Measuring axis | Single Axis: X (Default), Y (Contact Us); Dual Axis: X&Y | |
| Resolution | 0.05° | |
| Absolute accuracy | 0.1° | |
| Long-term stability | 0.05 | |
| Zero temp. coeffiecient | -40~85℃ ±0.006 ℃ | |
| Temp. sensitivity coefficient | -40~85℃ ≤100 ppm/ ℃ | |
| Power on time | 0.1s | |
| Response time | 0.2s | |
| MTBF | ≥5000h/ time | |
| IR | ≥100M | |
| Impact resistance | 100g@11ms, 3 times/ axis (half sinusoid) | |
| Anti-shock | 10grms, 10-1000Hz | |
| Waterproof | IP67 | |
| Cable | m, shield cable: 4*0.04mm² | |
| Certificate | CE, FCC, RoHS | |
| Warranty | 12 months |
Note:
When the single axis is selected:
- Single Output: When the alarm value is exceeded, there is a signal output, but it is unknown whether the alarm is on the left or right side of the X-axis.
- Dual Output: When the alarm value is exceeded, there is a signal output, and it can be known whether the alarm is on the left or right side of the X axis. The left and right sides correspond to one relay output respectively.
When the dual axis is selected:
- Single Output: When all directions of X&Y exceed the alarm value, there is only one alarm output.
- Dual Output: The X and Y axes correspond to one alarm each.
Dimension (Unit:mm)
Tilt Sensor Installation Direction Diagram
The installation must guarantee the inclinometer sensor bottom is parallel to measured face，and reduce the influence of dynamic and acceleration to the tilt sensor. This inclinometer sensor can be installed horizontally or mounted vertically, for installation please refer to the following scheme.
Tips: What is Tilt Sensor?
The tilt sensor is also an angle switch, using the core control unit and the principle of the capacitor miniature pendulum. Using the principle of earth’s gravity, when the inclination unit is tilted, the earth’s gravity will produce a component of gravity on the corresponding pendulum, and the corresponding capacitance will change. The inclination angle can be obtained by amplifying, filtering, and converting the capacitance. The tilt switch is a simple structure, convenient use, convenient installation, strong resistance to external electromagnetic interference, and can withstand large shocks and vibrations. It is an ideal choice for industrial equipment and platform measurement attitude!
